Environmental test ----

Product constant temperature and constant humidity test

According to the national standards, such as the GB2423.1-2008 test A "low temperature test method", the GB2423.2-2008 test B "high temperature test method", the GB2423.3-2006 test C "constant damp heat test method", the GB2423.4-2008 test D "alternating humidity and heat test method", and other related standards, design the production in strict accordance with the GB 10592-2008 "high low temperature test box technical conditions", "GB105862006 damp heat test box design and production technical conditions".

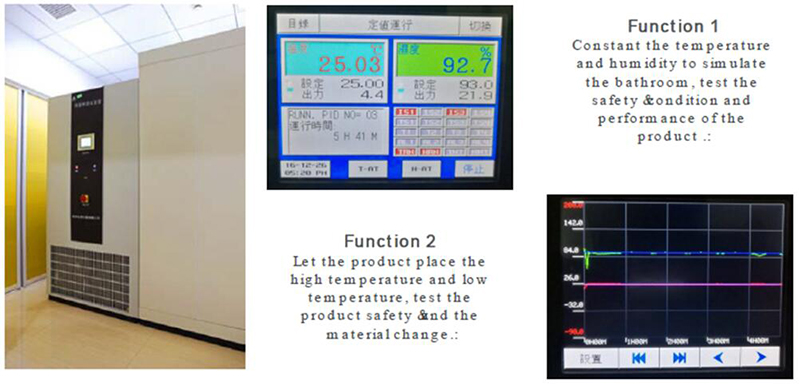

Constant temperature and humidity machine (constant temperature and humidity test box | programmable constant temperature and humidity testing machine | alternating high and low temperature test box) is to provide constant humidity, high temperature and other complex test environment and test conditions for electronic components, industrial materials and finished products in R & D, production and inspection of all aspects of the test, suitable for electronic appliances, telecommunications, chemical, metal, rubber, toys and other industries. Constant temperature and humidity system works by three interrelated systems: the refrigerant circulation system, air circulation system, electrical control system. In refrigerant cycle system, the liquid refrigerant in the evaporator absorbs heat from the air (air cooled and dehumidified) and begins to evaporate and form a final temperature difference between refrigerant and air. Liquid refrigerant is completely evaporated into low temperature and low pressure gas, after the compressor suction and compression (pressure and temperature increase), gaseous refrigerant   absorbs heat through the condenser (air / water), and condenses into liquid. After the expansion valve (or capillary) throttling, it becomes low temperature and low pressure refrigerant and goes into the evaporator to complete the refrigerant cycle process. The temperature range of constant humidity and constant humidity machine: -30 C ~ 85 C, humidity range: 30% ~ 98% RH.


Environmental test ----

high and low temperature alternating humidity and heat test box

Technical conditions of GB10589-89 low temperature test box

Technical conditions for GB11158-89 high temperature test box

Technical conditions of GB10592-89 high and low temperature test box

GB2423.1 low temperature test and test A

GB2423.2 high temperature test and test B

GB2423.22 temperature change test and test N


Alternating high and low temperature test box is suitable for the instrument,meter,electrical and electronic products in the whole and parts used to test and determine the parameters and performance of the electrical, electronics and other products and materials after the high temperature, low temperature, alternating hot degree or constant temperature test.

Temperature range: -30 C ~ 85 C, humidity range: 30% ~ 98% RH.
